PRODUCT
Quality Assurance | Technological Innovation | People-Oriented
Type Q86-324/75(3 3/8-12 3/4) manual tong is an essential tool in oil drilling operation to fasten or remove the screws of drill pipe and casing joint or coupling. It can be adjusted by changing latch lug jaws and latch steps.
Consult Now
Type Q86-324/75(3 3/8-12 3/4) manual tong is an essential tool in oil drilling operation to fasten or remove the screws of drill pipe and casing joint or coupling. It can be adjusted by changing latch lug jaws and latch steps.
Technical Specifications:

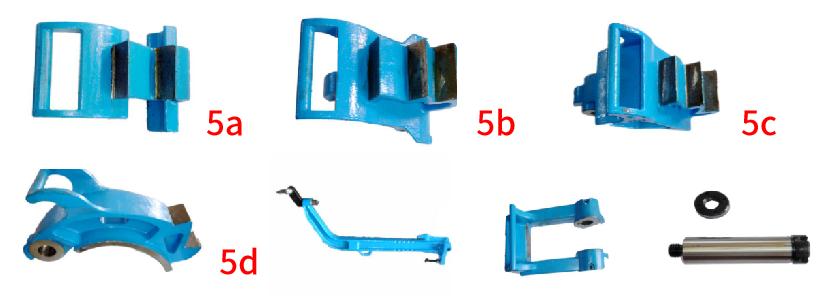

No. of latch lug jaws | Handle shoulder | Handle OD mm(in) | Max. Torque KN.m |
5a | 1 | 86-105(3 3/8-4 1/8) | 55 |
2 | 105-133(4 1/8-5 1/4) | ||
5b | 1 | 108-133(4 1/8-5 1/4) | 75 |
2 | 127-146(5-5 3/4) | ||
3 | 152-171(6-6 3/4) | ||
5b-1 | 1 | 133-146(5-6) | 75 |
2 | 146-168(6-7) | ||
3 | 168-208(7-8) | ||
5c | 1 | 168-187(6 5/8-7 3/8) | 75 55 |
2 | 187-203(7 3/8-8) | ||
3 | 216-219(8 1/2-8 2/8) | ||
5b | 1 | 216-244(8 1/2-9 5/8) | 55 |
2 | 270-273(10 5/8-10 3/4) | ||
5e | 1 | 298(11 3/4) | 55 |
2 | 324(12 3/4) |
