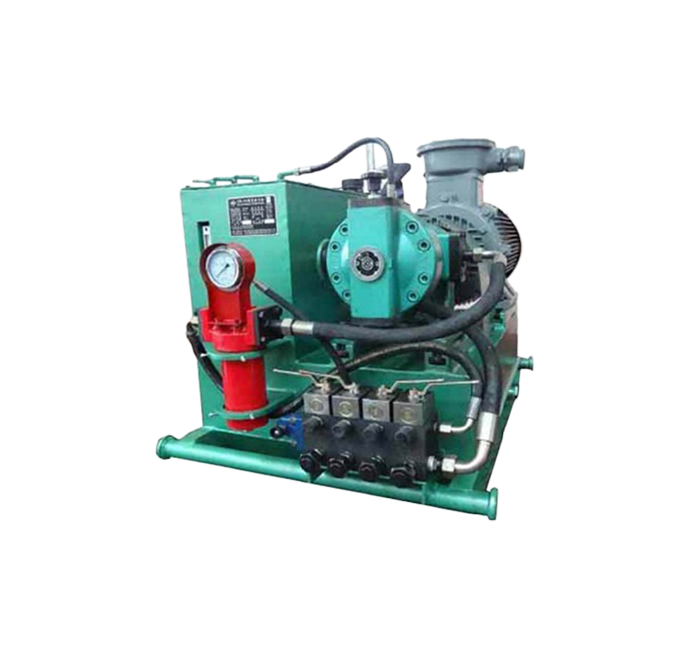

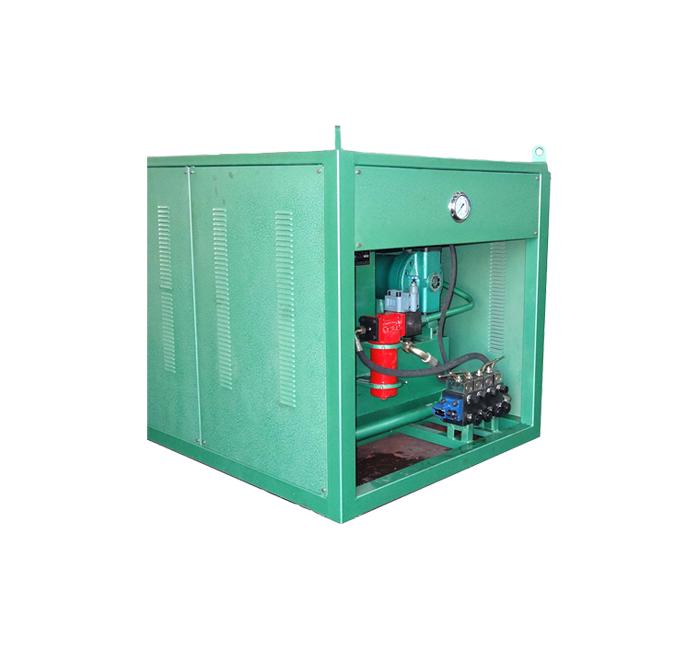

(F)YZB series of hydraulic power station are used to supply hydraulic power for onshore and offshore drilling operations. This kind of product has the advantage of wide adjustment range,easy operation, and high generality. Series of air cooled hydraulic power station especially are suitable for desert and for continuous working situation.The product features compact structure,easy operation, wide adjustable range,good heating or radiating etc.
Consult Now
(F)YZB series of hydraulic power station are used to supply hydraulic power for onshore and offshore drilling operations. This kind of product has the advantage of wide adjustment range,easy operation, and high generality. Series of air cooled hydraulic power station especially are suitable for desert and for continuous working situation.The product features compact structure,easy operation, wide adjustable range,good heating or radiating etc.
Model | YZB-120 | YZB-160 | FYZB-120LD | |
液压系统额定压力 Rated Pressure | MPa | 20 | 16 | 20 |
psi | 2900 | 2320 | 2900 | |
液压系统额定流量 Rated Flow | L/mi | 120 | 160 | 120 |
gpm | 31.7 | 42.3 | 31.7 | |
有效容积 Available Capacity | L | 587 | 587 | 600 |
gal | 155 | 155 | 158.5 | |
驱动功率 Drive Power | Kw | 37 | 37 | 37 |
hp | 50 | 50 | 50 | |
加热功率 Heating Power | Kw | — — | — — | 3×2 |
hp | — — | — — | 4×2 | |
风机功率 Fan Motor Power | Kw | — — | — — | 0.37×2 |
hp | — — | — — | 0.5×2 | |
散热面积 Radiation Area | m² | — — | — — | 40 |
ft² | — — | — — | 430.6 | |
外形尺寸 Size | mm | 1520×1090×1255 | 1720×1090×1255 | 1600×1300×1650mm |
in | 59.8×43×49.4 | 67.7×43×49.4 | 63×51×65 | |
重 量 Weight | kg | 1300 | 1350 | 1800 |
Ib | 2866 | 2976 | 3969 | |
