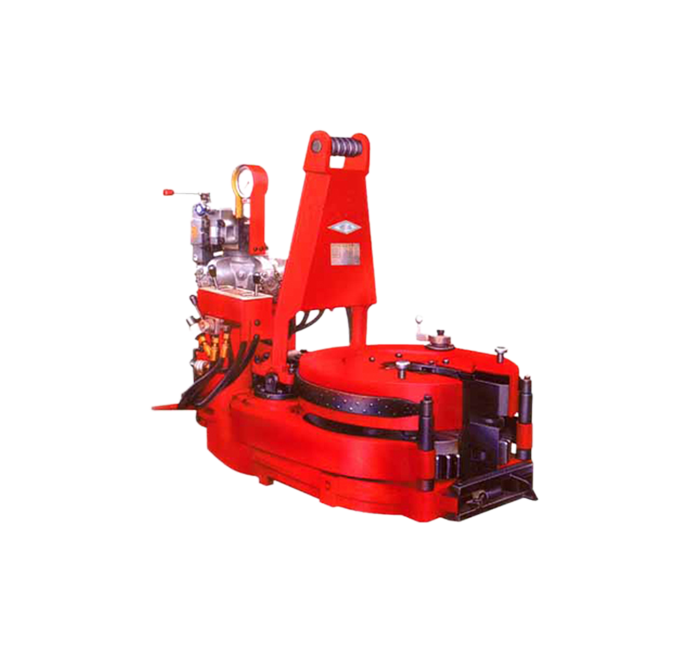

ZQ drill pipe powertongs is an ideal well head tool for oil well,and widely applied for making-up and breaking-out in offshore and onshore drilling operations and workover operations.Open-throat design of the ZQ series allows the tongs to escape from drilling pipe freely with high mobility. The tong is a combination of spinning tong and torque tong. It substitutes cathead, manual tong and rotary rope in making-up and breaking- out.
The tongs are design and manufactured according API SPEC 7k "Driling and Well serving Equinment.
Model | ZQ127-25 | ZQ162-50 | ZQ203-100 | ZQ203-125 |
适用管径Size range | mm | 65-127 | 85-162 | 127-203 | 127-203 |
in | 2 3/8 接箍 coupling-31/2 接箍coupling | 2 3/8 接箍coupling-5 接箍coupling | 3 1/2 接箍coupling-8 本体body | 3 1/2 接箍coupling-8 本体body |
最大扭矩Max.torque | KN ·m | 25 | 50 | 100 | 125 |
ft.Ibf | 18440 | 36880 | 73750 | 92200 |
高档转速Speed(High gear) | rpm | 65 | 60 | 40 | 40 |
低档转速Speed(Low gear) | rpm | 10.5 | 4.1 | 2.7 | 2.7 |
工作气压Air pressure | Mpa | 0.5-1 |
psi | 72-144 |
液压系统额定压力Pressure rating | Mpa | 12 | 16 | 16.6 | 20 |
psi | 1740 | 2320 | 2400 | 2900 |
液压系统额定流量Flow rating | L/min | 120 | 120 | 114 | 114 |
gpm | 31.7 | 31.7 | 30 | 30 |
移送缸移送距离Shifting distance | mm | 1000 | 1000 | 1500 | 1500 |
in | 39.4 | 39.4 | 59 | 59 |
钳头升降距离Lifting distance | mm |
| 0-440 | 0-430 |
|
in |
| 0-17.3 | 0-17 |
|
外形尺寸 Overall dimensions | mm | 110×735×815 | 1570×800×1190 | 1760×1000×1360 | 1785×1080×1360 |
in | 44×31×32 | 62×31×41 | 69×39×53 | 70×42×53 |
重 量 Weight | kg | 620 | 1500 | 2400 | 2650 |
Ib | 1360 | 3310 | 5290 | 5840 |
